BRUSHLESS AC MOTORS

PRO PLANET is home to a range of permanent-magnet synchronous motors, otherwise known as ac brushless. Within the range there are both stand-alone brushless motors (PRO LINE) and brushless motors with on-board digital electronics, our integrated solutions (PRO LAB).

loghi-proline

The line of stand-alone brushless motors is called PRO LINE, and is divided according to the motor size and the polarity:

PRO LINE ONE up to 2.5 Nm.

PRO LINE TWO from up to 19 Nm.

The particular features of this range of motors are as follows:

  • Concentrated winding with high copper filling
  • High power to size ratio
  • High efficiency
  • NdFeB permanent ring magnets (PRO LINE ONE)
  • High energy production
  • Excellent resistance to internal and external corrosion
  • High demagnetisation limit

The lamination plates have been designed to optimize the use of the radial magnets and combining that with the “concentrated” winding, results in the maximization of the motor’s performance in a compact unit.

BRUSHLESS SERVOMOTORS WITH INTEGRATED ELECTRONICS

Progetto senza titolo

PL4 is a range of motors with on-board integrated electronics.

Supporting CanOpen 402 and ModBus and powered with 24V or 48V DC, these motors are perfectly suited for changeover applications.

PRO PLANET PRODUCTS

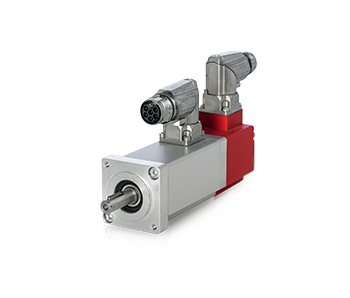

PROLINE ONE - BRUSHLESS SERVOMOTORS

Up to 3 Nm

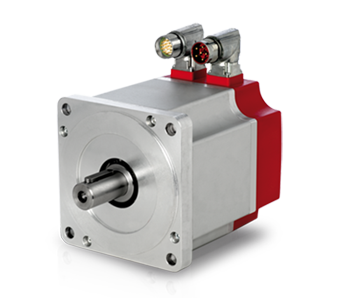

PROLINE TWO – BRUSHLESS SERVOMOTORS

from 4 to 19 Nm

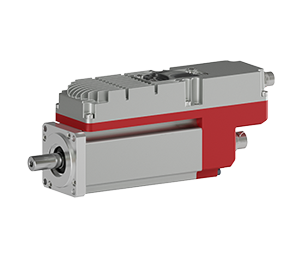

PL4 – 60 BRUSHLESS MOTORS WITH INTEGRATED ELECTRONICS

Up to 1,02 Nm
