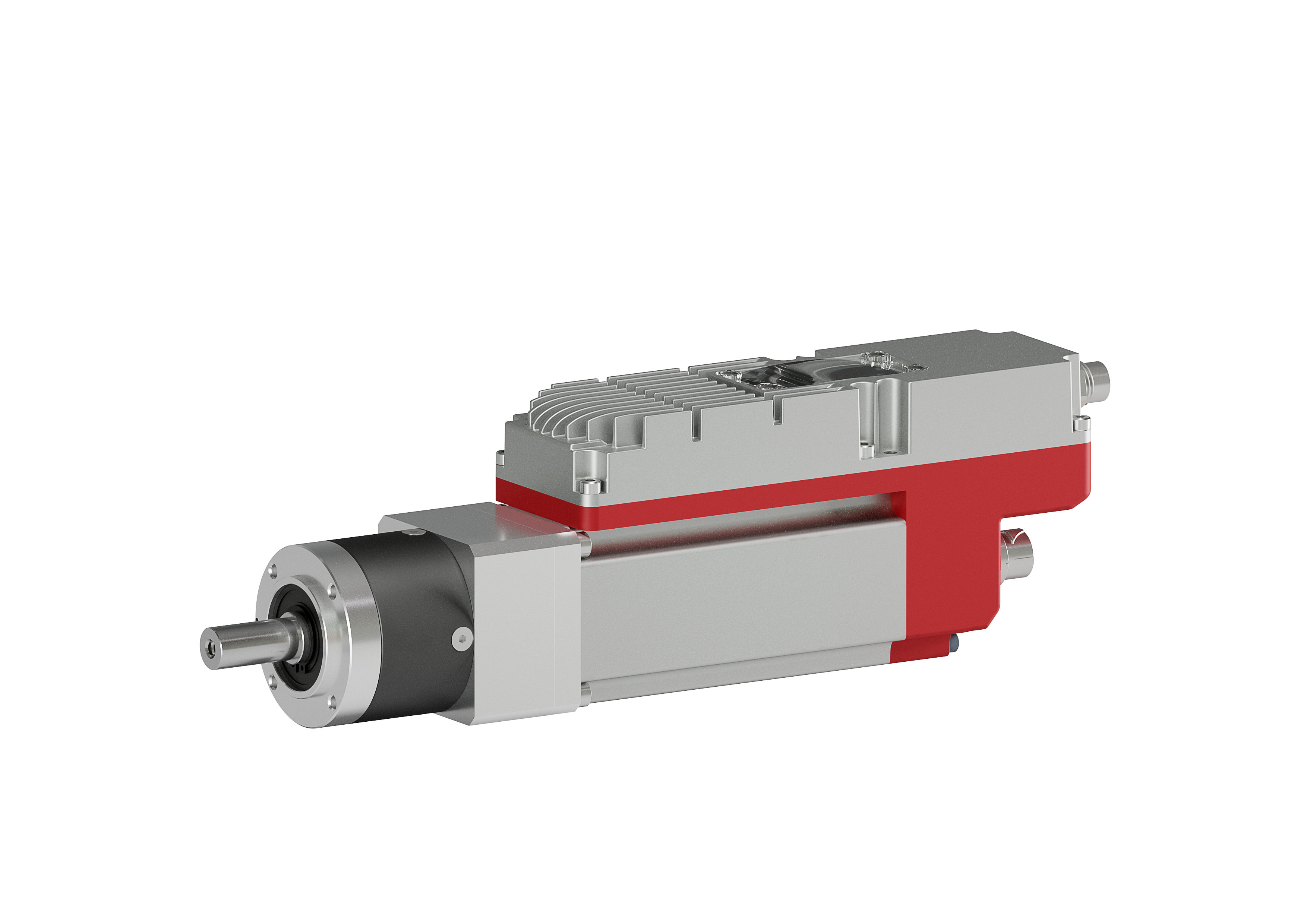

The PL4 platform epitomises Siboni’s mechatronic capabilities combining its brushless motors, planetary gearboxes and electronic drive, all of which are designed by Siboni and made in Emilia-Romagna, a leading region in Europe for mechatronic solutions. The PL4 products are designed to be autonomous and can also be used in nearby scenarios.
Low-voltage brushless motors with integrated electronics are extremely compact solution, highly energy efficient and offer superior control precision, rendering them perfect for accurate industrial applications.
The PL4 family is extremely versatile and offers flexibility when designing high performance devices and extreme systems.
Key features:
- 2 range of motors: PL4-40 and PL4-60
- Fieldbus: EtherCAT (CoE), CAN open (DS 402) and I/O Link Wireless (IEC 61131-9)
- 48 Vdc supplied voltage, power up to 400 WATT.
- Rated torque: up to 1,02 Nm
- Stationary brake (optional) 2 Nm
- STO SIL 2 CAT. d
- Input and output digital/analog (depending on the motor model)
- Feedback:
- Absolute magnetic encoder, single turn 12 Bit
- Absolute magnetic encoder, multi turn, without battery (12 Bit + 32 Bit)
- Protection degree IP65

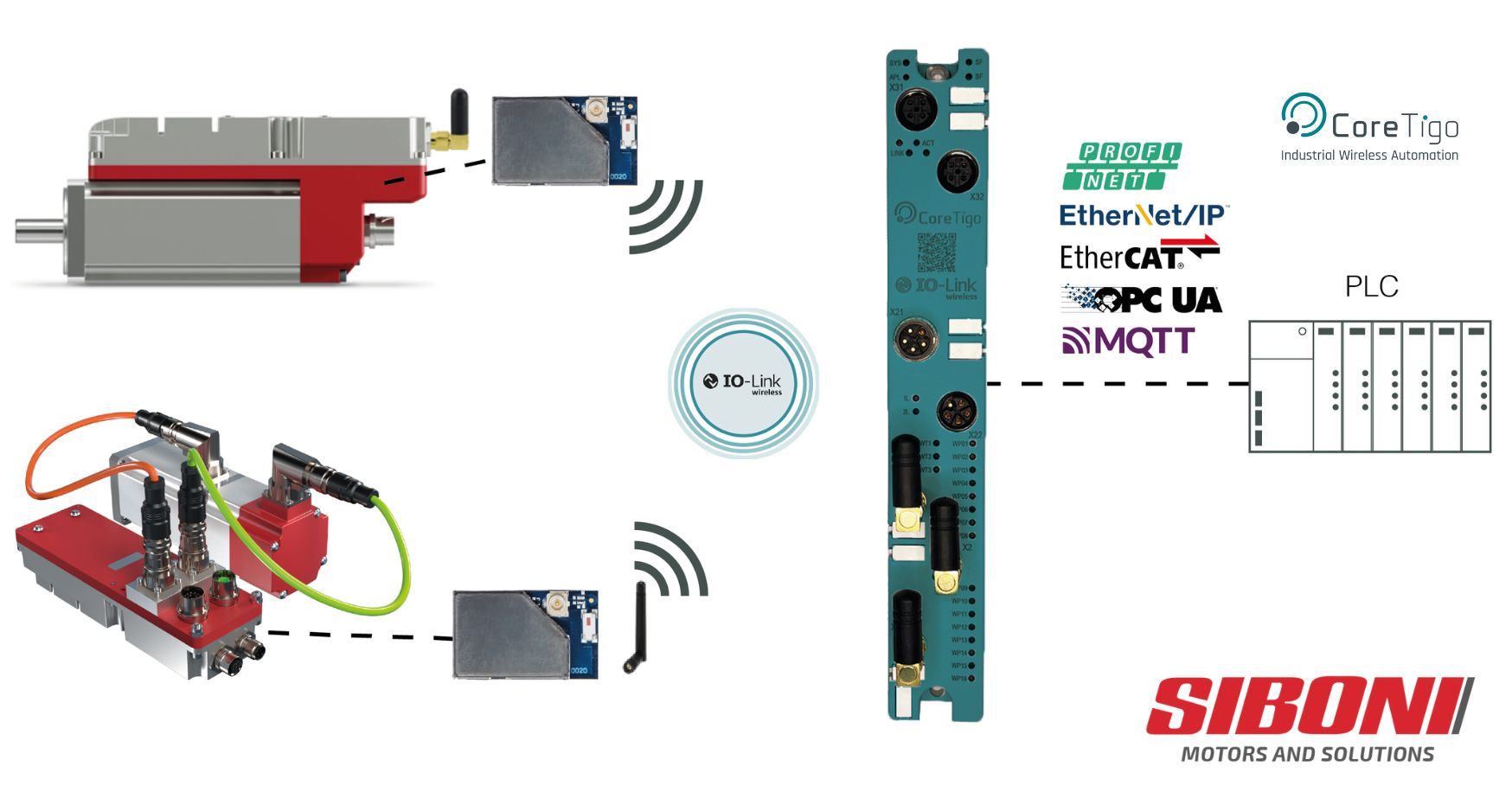

PL4 / IO-LINK WIRELESS
IO-Link Wireless is a deterministic, low-latency, highly reliable, universal wireless communications scalable protocol. Developed based on the IO-Link IEC 61131-9 standard, it was designed specifically for industrial automation, capable of coexisting with other networks, both wired and wireless.
Wireless and contactless communication aboard integrated solutions results in fully automated, innovative and competitive systems allowing machines to be designed in ways not previously possible for the packaging, assembly, logistics and material handling industries.
