PLANETARY GEARBOXES

Lines and Torque Values
Line RE up to 400 Nm
Line NXT up to a 210 Nm
Line NXR up to a 248 Nm
Line NXS up to a 220 Nm

PGB PLANET is home to our range of precision planetary gearboxes.
For each application in which a planetary gearbox is used an evaluation of the torque requirements, the torsional rigidity of the angular backlash, the operating noise levels and many other parameters needs to be performed to identify the correct solution.

RE-ICO

The RE line is the first series of Siboni planetary gearboxes to be launched and is designed to ensure a strong load transmission, high accuracy and reliability . Not only were the market requirements considered but also the motor manufacturer’s mechanical choices were taken into account when carefully choosing the range of coupling flanges and coupling systems.

NXT-ICO

The NXT line is the second series of Siboni planetary gearboxes to be launched and is designed to offer a greater dynamic response with respect to the RE line, thus satisfying the requirements of industrial automation machine manufacturers.
The NXT line sparked further development of the modular application possibilities, with focus given to both the motor coupling and the movement of all axes.

NXR-ICO

The NXR line of planetary gearboxes was launched in 2017 which combines the specific features of the previous projects RE (transmitted torque) and NXT (torsional rigidity) in a single product. The gearbox is the link between the electronic drivers and the mechanics of the system.

NXS-ICO

In 2019 we complemented our range of straight geared planetary gearboxes with NXS line, designed to keep high performance in compact dimensions.

To facilitate the use of the PGB PLANET products, Siboni has made available the SI SIZING software which assists in optimising the sizing of the entire kinematic chain by analysing the individual components.

PGB PLANET PRODUCTS

NXT GEAR – PLANETARY GEARBOXES

210 Nm

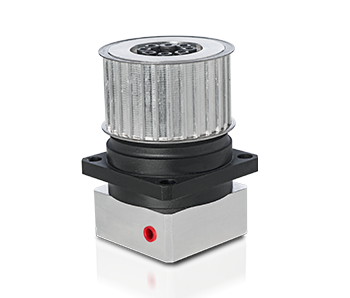

NXT GEAR-P – PLANETARY GEARBOXES WITH PULLEY

210 Nm

NXR GEAR – PLANETARY GEARBOXES

248 Nm

NXS GEAR – PLANETARY GEARBOXES

220 Nm

RE GEAR – PLANETARY GEARBOXES

450 Nm
